Standard with Super-batts and replaceable teeth on pickup. Heavy duty hydraulic drive motor and Magnaloy Hytrel coupler. 4'8" pick up width. Picks rock from 2”- 27” diameter. 3.5 cu. yd. hopper. 8'7" dump height. Tractor requires minimum 4 sets hydraulics, 15 gallons/minute oil flow, closed or load sensing hydraulic pump and a case drain.

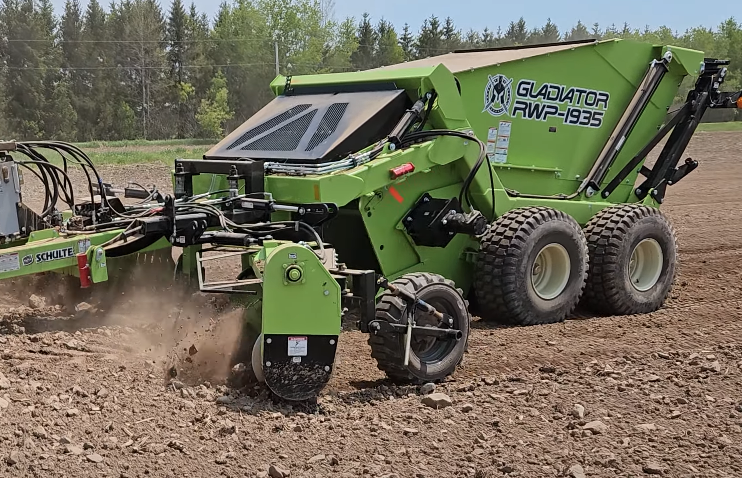

Clean up your fields efficiently with one pass, one operator, one tractor. Rock raking and picking in one operation with proven Schulte technology.
- Easy, on-the-fly adjustable working widths of 16’ - 19’ (4.8m - 5.8m) for a variety of applications
- Adjustable working depths down to 4.25” (11cm) help dislodge partially exposed stones
- Strong, durable, proven hard surfaced teeth and batt reels ensure rocks from 2” to 27” are picked with ease.
- Large, 3.5 cu yd (2.68 cu m) bucket with a dumping height of over 8 1/2’ (2.6m) for truck boxes or high piles
- Separate hydraulic adjustment of windrower and reel speeds for custom windrowing and picking
- Spring loaded 450 BNH batts and 1 1/2” (3.8cm) spaced T-Iron grate ensure minimal rock jamming
- A tandem axle walking wheel system provides exceptional flotation and ground following
